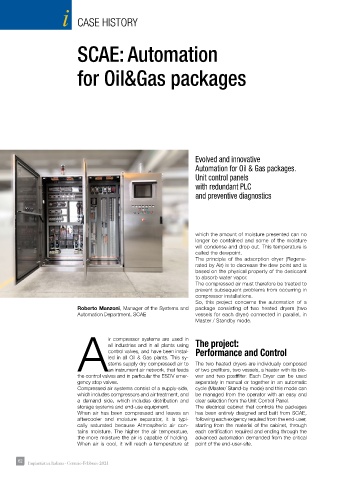

CASE HISTORY



                            SCAE: Automation



                            for Oil&Gas packages


















                                                                      Evolved and innovative
                                                                      Automation for Oil & Gas packages.
                                                                      Unit control panels
                                                                      with redundant PLC
                                                                      and preventive diagnostics







                                                                      which the amount of moisture presented can no
                                                                      longer be contained and some of the moisture
                                                                      will condense and drop out. This temperature is
                                                                      called the dewpoint.
                                                                      The principle of the adsorption dryer (Regene-
                                                                      rated by Air) is to decrease the dew point and is
                                                                      based on the physical property of the desiccant
                                                                      to absorb water vapor.
                                                                      The compressed air must therefore be treated to
                                                                      prevent subsequent problems from occurring in
                                                                      compressor installations.
                                                                      So, this project concerns the automation of a
                            Roberto Manzoni, Manager of the Systems and   package consisting of two heated dryers (two
                            Automation Department, SCAE               vessels for each dryer) connected in parallel, in
                                                                      Master / Standby mode.


                                       ir compressor systems are used in
                                       all industries and in all plants using  The project:
                                       control valves, and have been instal-  Performance and Control
                                       led in all Oil & Gas plants. This sy-
                                       stems supply dry compressed air to   The two heated dryers are individually composed
                            Aan instrument air network, that feeds    of two prefilters, two vessels, a heater with its blo-
                            the control valves and in particular the ESDV emer-  wer and two postfilter. Each Dryer can be used
                            gency stop valves.                        separately in manual or together in an automatic
                            Compressed air systems consist of a supply-side,   cycle (Master/ Stand-by mode) and this mode can
                            which includes compressors and air treatment, and   be managed from the operator with an easy and
                            a  demand  side,  which  includes  distribution  and   clear selection from the Unit Control Panel.
                            storage systems and end-use equipment.    The electrical cabinet that controls the packages
                            When air has been compressed and leaves an   has been entirely designed and built from SCAE,
                            aftercooler  and  moisture  separator,  it  is  typi-  following each exigency required from the end-user,
                            cally saturated because Atmospheric air con-  starting from the material of the cabinet, through
                            tains moisture. The higher the air temperature,   each certification required and ending through the
                            the more moisture the air is capable of holding.   advanced automation demanded from the critical
                            When air is cool, it will reach a temperature at   point of the end-user-site.
