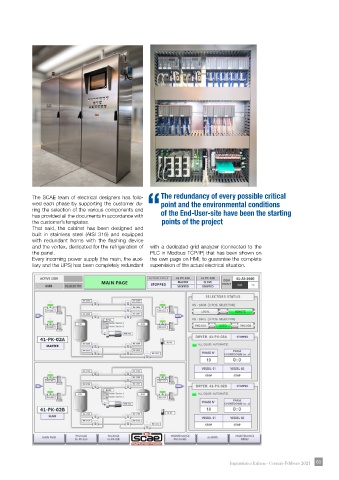

The SCAE team of electrical designers has follo-  The redundancy of every possible critical
            wed each phase by supporting the customer du-  point and the environmental conditions
            ring the selection of the various components and
            has provided all the documents in accordance with “of the End-User-site have been the starting
            the customer’s templates.                       points of the project
            That said, the cabinet has been designed and
            built in stainless steel (AISI 316) and equipped
            with redundant horns with the flashing device
            and the vortex, dedicated for the refrigeration of   with a dedicated grid analyzer (connected to the
            the panel.                                PLC in Modbus TCP/IP) that has been shown on
            Every incoming power supply (the main, the auxi-  the own page on HMI, to guarantee the complete
            liary and the UPS) has been completely redundant   supervision of the actual electrical situation.
