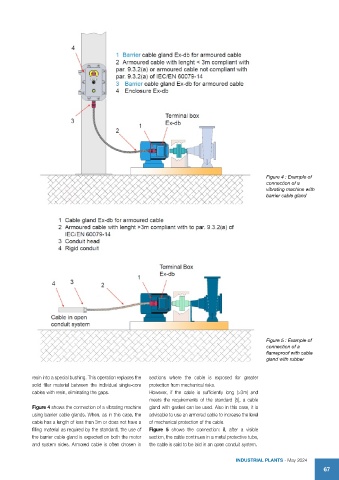

Figure 4 : Example of
                                                                                               connection of a
                                                                                               vibrating machine with
                                                                                               barrier cable gland






























                                                                                               Figure 5 : Example of
                                                                                               connection of a
                                                                                               flameproof with cable
                                                                                               gland with rubber


            resin into a special bushing. This operation replaces the   sections where the cable is exposed for greater
            solid filler material between the individual single-core   protection from mechanical risks.
            cables with resin, eliminating the gaps.  However, if the cable is sufficiently long (>3m) and
                                                     meets the requirements of the standard [5], a cable
            Figure 4 shows the connection of a vibrating machine   gland with gasket can be used. Also in this case, it is
            using barrier cable glands. When, as in this case, the   advisable to use an armored cable to increase the level
            cable has a length of less than 3m or does not have a   of mechanical protection of the cable.
            filling material as required by the standard, the use of   Figure 5 shows the connection: if, after a visible
            the barrier cable gland is expected on both the motor   section, the cable continues in a metal protective tube,
            and system sides. Armored cable is often chosen in   the cable is said to be laid in an open conduit system.
