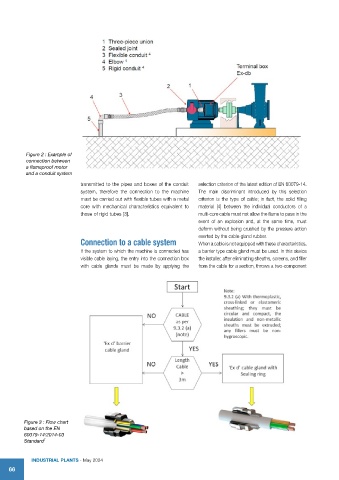

Figure 2 : Example of
          connection between
          a flameproof motor
          and a conduit system

                             transmitted to the pipes and boxes of the conduit   selection criterion of the latest edition of EN 60079-14.
                             system,  therefore  the connection  to  the  machine   The main discriminant introduced by this selection
                             must be carried out with flexible tubes with a metal   criterion is the type of cable; in fact, the solid filling
                             core with mechanical characteristics equivalent to   material [4] between the individual conductors of a
                             those of rigid tubes [3].                 multi-core cable must not allow the flame to pass in the
                                                                       event of an explosion and, at the same time, must
                                                                       deform without being crushed by the pressure action
                                                                       exerted by the cable gland rubber.
                             Connection to a cable system              When a cable is not equipped with these characteristics,
                             If the system to which the machine is connected has   a barrier type cable gland must be used. In this device
                             visible cable laying, the entry into the connection box   the installer, after eliminating sheaths, screens, and filler
                             with cable glands must be made by applying the   from the cable for a section, throws a two-component
































          Figure 3 : Flow chart
          based on the EN
          60079-14:2014-03
          Standard 1
