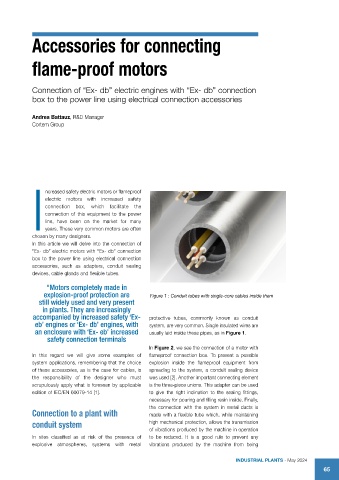

Accessories for connecting



            flame-proof motors





            Connection of “Ex- db” electric engines with “Ex- db” connection
            box to the power line using electrical connection accessories


            Andrea Battauz, R&D Manager
            Cortem Group













                 ncreased safety electric motors or flameproof
                 electric motors with increased safety
                 connection  box,  which  facilitate  the
                 connection  of  this  equipment  to  the  power
                 line, have been on the market for many
            I years. These very common motors are often
            chosen by many designers.
            In this article we will delve into the connection of
            “Ex- db” electric motors with “Ex- db” connection
            box to the power line using electrical connection
            accessories, such as adapters, conduit sealing
            devices, cable glands and flexible tubes.

                 “Motors completely made in
                explosion-proof protection are        Figure 1 : Conduit tubes with single-core cables inside them
               still widely used and very present
                in plants. They are increasingly
             accompanied by increased safety ‘Ex-    protective tubes, commonly known as conduit
             eb’ engines or ‘Ex- db’ engines, with   system, are very common. Single insulated wires are
             an enclosure with ‘Ex- eb’ increased    usually laid inside these pipes, as in Figure 1.
                  safety connection terminals

                                                     In Figure 2, we see the connection of a motor with
            In  this regard we  will  give  some  examples of   flameproof connection box. To prevent a possible
            system applications, remembering that the choice   explosion  inside  the  flameproof  equipment  from
            of these accessories, as is the case for cables, is   spreading to the system, a conduit sealing device
            the responsibility of the designer who must   was used [2]. Another important connecting element
            scrupulously apply what is foreseen by applicable   is the three-piece unions. This adapter can be used
            edition of IEC/EN 60079-14 [1].          to give the right inclination to the sealing fittings,
                                                     necessary for pouring and filling resin inside. Finally,
                                                     the connection with the system in metal ducts is
            Connection to a plant with               made with a flexible tube which, while maintaining

            conduit system                           high mechanical protection, allows the transmission
                                                     of vibrations produced by the machine in operation
            In sites classified as at risk of the presence of   to  be  reduced.  It  is  a  good  rule  to  prevent  any
            explosive atmospheres, systems with metal   vibrations produced by the machine from being
