Page 73 - Industrial Plant 2015
P. 73

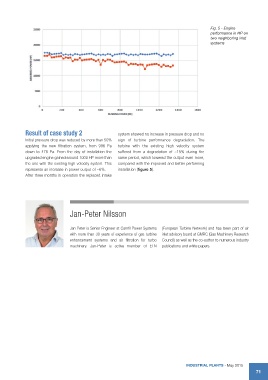

Fig. 5 - Engine
                                                                                                         performance in HP on
                                                                                                         two neighboring inlet
                                                                                                         systems

Result of case study 2                                system showed no increase in pressure drop and no
                                                      sign of turbine performance degradation. The
Initial pressure drop was reduced by more than 50%    turbine with the existing high velocity system
applying the new filtration system, from 996 Pa       suffered from a degradation of ~15% during the
down to 478 Pa. From the day of installation the      same period, which lowered the output even more,
upgraded engine gained around 1000 HP more than       compared with the improved and better performing
the one with the existing high velocity system. This  installation (figure 5).
represents an increase in power output of ~6%.
After three months in operation the replaced intake

Jan-Peter Nilsson

Jan-Peter is Senior Engineer at Camfil Power Systems  (European Turbine Network) and has been part of air
with more than 30 years of experience of gas turbine  inlet advisory board at GMRC (Gas Machinery Research
enhancement systems and air filtration for turbo      Council) as well as the co-author to numerous industry
machinery. Jan-Peter is active member of ETN          publications and white papers.
