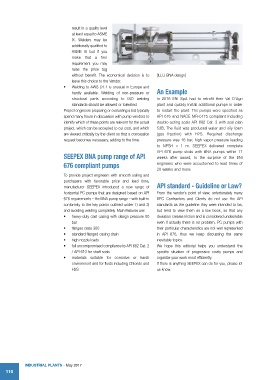

result in a quality level
                                 at least equal to ASME
                                 IX.  Welders  may  be
                                 additionally qualified to
                                 ASME IX but if you
                                 make  that  a  firm
                                 requirement you may
                                 raise the price tag
                                 without benefit. The economical decision is to   [ILLU BNA design]
                                 leave this choice to the Vendor.
                             •   Welding to AWS D1.1 is unusual in Europe and
                                 hardly available. Welding of non-pressure or  An Example

                                 structural parts according to ISO welding   In  2016  ENI  SpA  had  to  retrofit  their  Val  D’Agri
                                 standards should be allowed or tolerated.  plant and quickly install additional pumps in order
                             Project engineers preparing or evaluating a bid typically   to restart the plant. The pumps were specified as
                             spend many hours in discussion with pump vendors to   API  676 and NACE MR-0175 compliant including
                             identify which of these points are relevant for the actual   double-acting seals API 682 Cat. 2 with seal plan
                             project, which can be accepted to cut cost, and which   53B. The fluid was produced water and oily foam
                             are viewed critically by the client so that a concession   (gas fraction) with H2S. Required discharge
                             request becomes necessary, adding to the time.   pressure was 16 bar, high vapor pressure leading
                                                                       to  NPSH  <  1  m. SEEPEX  delivered  complete
                                                                       API  676  pump  skids with BNA pumps  within 11
                             SEEPEX BNA pump range of API              weeks after award, to the surprise of the ENI

                             676 compliant pumps                       engineers who were accustomed to lead times of
                                                                       20 weeks and more.
                             To provide project engineers with smooth sailing and
                             purchasers with favorable price and lead time,
                             manufacturer SEEPEX introduced a new range of  API standard - Guideline or Law?

                             horizontal PC pumps that are designed based on API   From  the  vendor’s  point  of  view,  unfortunately  many
                             676 requirements – the BNA pump range – with built-in   EPC Contractors and Clients do not use the API
                             conformity to the key points outlined under 1) and 2)   standards as the guideline they were intended to be,
                             and avoiding welding completely. Main features are:   but tend to view them as a law book, so that any
                             •   heavy-duty cast casing with design pressure 50   deviation creates friction and is considered undesirable
                                 bar                                   even if actually there is no problem. PC pumps with
                             •   flanges class 300                     their particular characteristics are not well represented
                             •   standard flanged casing drain         in API 676, thus we keep discussing the same
                             •   high nozzle loads                     inevitable topics.
                             •   full uncompromised compliance to API 682 Cat. 2   We hope this editorial helps you understand the
                                 / API 610 for shaft seals             specific situation of progressive cavity pumps and
                             •   materials suitable for corrosive or harsh   organize your work most efficiently.
                                 environment and for fluids including Chloride and   If there is anything SEEPEX can do for you, please let
                                 H2S                                   us know.
