may cause side reactions, modify the extension of
                                                      the two phase region and have an effect increasing
                                                      the saturation pressure which is the driving force in
                                                      the running shear fracture of a pipeline transporting
                                                      liquid /supercritical CO .
                                                                        2
                                                      The R&D gap analysis on the running ductile frac-
                                                      ture for subsea lines transporting CO  mixtures has
                                                                                  2
                                                      led to the development of an internal guideline to
                                                      design  new  or  to  verify  repurposed  lines  and  to
                                                      identify that it would be desirable to reinforce some
                                                      assumptions with experimental burst tests for me-

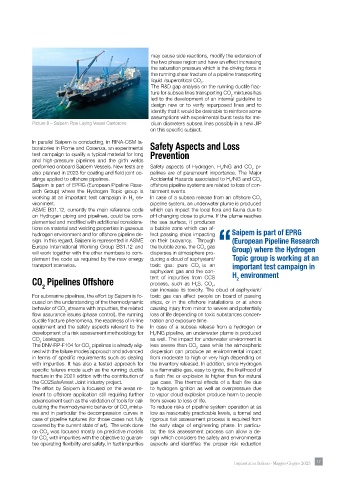

            Picture 8 – Saipem Pipe Laying Vessel Castorone  dium diameters subsea lines possibly in a new JIP
                                                      on this specific subject.
            In parallel Saipem is conducting, in RINA-CSM la-
            boratories in Rome and Cosenza, an experimental  Safety Aspects and Loss
            test campaign to qualify a typical material for long   Prevention
            and high-pressure pipelines and the girth welds
            performed onboard Saipem Vessels. New tests are   Safety aspects of Hydrogen, H /NG and CO  pi-
                                                                               2
                                                                                         2
            also planned in 2023 for coating and field joint co-  pelines  are  of  paramount  importance.  The  Major
            atings applied to offshore pipelines.     Accidental Hazards associated to H /NG and CO
                                                                                  2
                                                                                            2
            Saipem is part of EPRG (European Pipeline Rese-  offshore pipeline systems are related to loss of con-
            arch Group) where the Hydrogen Topic group is   tainment events.
            working at an important test campaign in H  en-  In case of a subsea release from an offshore CO
                                                                                            2
                                               2
            vironment.                                pipeline system, an underwater plume is produced
            ASME B31.12, currently the main reference code   which can impact the local flora and fauna due to
            on Hydrogen piping and pipelines, could be com-  pH changing close to plume. If the plume reaches
            plemented and modified with additional considera-  the sea surface, it produces
            tions on material and welding properties in gaseous   a bubble zone which can af-
            hydrogen environment and for offshore pipeline de-  fect passing ships impacting   Saipem is part of EPRG
            sign. In this regard, Saipem is represented in ASME   on their buoyancy.  Through   (European Pipeline Research
            Europe International Working Group B31.12 and   the bubble zone, the CO  gas   “Group) where the Hydrogen
                                                                         2
            will work together with the other members to com-  disperses in atmosphere pro-
            plement the code as required by the new energy   ducing a cloud of asphyxiant/   Topic group is working at an
            transport scenarios.                      toxic gas: pure CO is an     important test campaign in
                                                                       2
                                                      asphyxiant gas and the con-  H  environment
            CO  Pipelines Offshore                    tent of impurities from CCS   2
                                                      process,  such  as H S, CO ,
                2                                                     2    2
                                                      can increase its toxicity. The cloud of asphyxiant/
            For submarine pipelines, the effort by Saipem is fo-  toxic gas can affect people on board of passing
            cused on the understanding of the thermodynamic   ships, or in the offshore installations or at shore
            behavior of CO  streams with impurities, the related   causing injury from minor to severe and potentially
                        2
            flow assurance issues (phase control), the running   loss of life depending on toxic substances concen-
            ductile fracture phenomena, the readiness of in-line   tration and exposure time.
            equipment and the safety aspects relevant to the   In case of a subsea release from a hydrogen or
            development of a risk assessment methodology for   H /NG pipeline, an underwater plume is produced
                                                       2
            CO  Leakages.                             as well. The impact for underwater environment is
               2
            The DNV-RP-F104 for CO  pipelines is already alig-  less severe than CO  case while the atmospheric
                                2
                                                                      2
            ned with the failure modes approach and advanced   dispersion  can  produce an  environmental  impact
            in terms of specific requirements such as dealing   from moderate to high or very high depending on
            with impurities. It has also a tested approach for   the inventory released. In addition, since Hydrogen
            specific failures mode such as the running ductile   is a flammable gas, easy to ignite, the likelihood of
            fracture in the 2021 edition with the contribution of   a flash fire or explosion is higher than for natural
            the CO2SafeArrest Joint industry project.   gas case. The thermal effects of a flash fire due
            The effort by Saipem is focused on the areas re-  to hydrogen ignition as well as overpressure due
            levant to offshore application still requiring further   to vapor cloud explosion produce harm to people
            advancement such as the validation of tools for cal-  from severe to loss of life.
            culating the thermodynamic behavior of CO mixtu-  To reduce risks of pipeline system operation at as
                                              2
            res and in particular the decompression curves in   low as reasonably practicable levels, a formal and
            case of pipeline ruptures (for those cases not fully   rigorous risk assessment process is required from
            covered by the current state of art).  The work done   the  early stage  of  engineering  phase.  In  particu-
            on CO  was focused mostly on predictive models   lar, the risk assessment process can allow a de-
                  2
            for CO  with impurities with the objective to guaran-  sign which considers the safety and environmental
                 2
            tee operating flexibility and safety. In fact impurities   aspects  and  identifies  the  proper  risk  reduction
