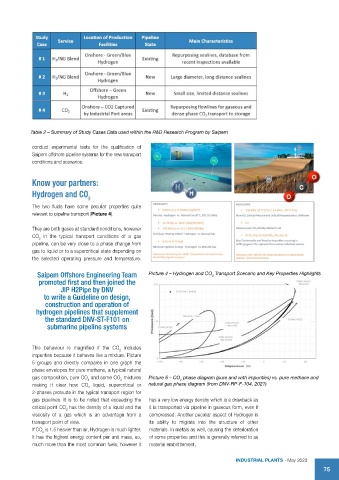

Table 2 – Summary of Study Cases Data used within the R&D Research Program by Saipem


            conduct experimental tests for the qualification of
            Saipem offshore pipeline systems for the new transport
            conditions and scenarios.


            Know your partners:
            Hydrogen and CO
                                2
            The two fluids have some peculiar properties quite
            relevant to pipeline transport (Picture 4).

            They are both gases at standard conditions, however
            CO  in the typical transport conditions of a gas
               2
            pipeline, can be very close to a phase change from
            gas to liquid or to a supercritical state depending on
            the selected operating pressure and temperature.

              Saipem Offshore Engineering Team       Picture 4 – Hydrogen and CO  Transport Scenario and Key Properties Highlights
                                                                            2
               promoted first and then joined the
                      JIP H2Pipe by DNV
                to write a Guideline on design,
                 construction and operation of
              hydrogen pipelines that supplement
                 the standard DNV-ST-F101 on
                  submarine pipeline systems



            This behaviour is magnified if the CO  includes
                                           2
            impurities because it behaves like a mixture. Picture
            5  groups  and  directly  compares  in  one  graph the
            phase envelopes for pure methane, a typical natural
            gas composition, pure CO  and some CO  mixtures   Picture 5 – CO  phase diagram (pure and with impurities) vs. pure methane and
                                2          2                    2
            making it clear how CO  liquid, supercritical or   natural gas phase diagram (from DNV-RP-F-104, 2021)
                                2
            2-phases protrude in the typical transport region for
            gas pipelines. It is to be noted that exceeding the   has a very low energy density which is a drawback as
            critical point CO  has the density of a liquid and the   it is transported via pipeline in gaseous form, even if
                        2
            viscosity of a gas which is an advantage from a   compressed. Another peculiar aspect of Hydrogen is
            transport point of view.                 its  ability  to  migrate  into  the  structure  of  other
            If CO  is 1.5 heavier than air, Hydrogen is much lighter.   materials. In metals as well, causing the deterioration
                2
            It has the highest energy content per unit mass, so,   of some properties and this is generally referred to as
            much more than the most common fuels, however it   material embrittlement.
