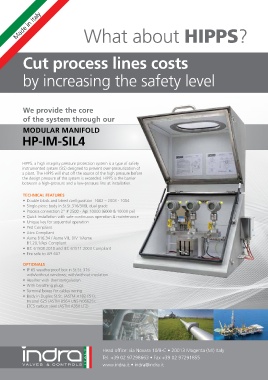

Made in Italy What about HIPPS?

Cut process lines costs

by increasing the safety level

We provide the core

of the system through our

MODULAR MANIFOLD
HP-IM-SIL4

HIPPS, a high integrity pressure protection system is a type of safety
instrumented system (SIS) designed to prevent over-pressurization of
a plant. The HIPPS will shut off the source of the high pressure before
the design pressure of the system is exceeded. HIPPS is the barrier
between a high-pressure and a low-pressure line at installation.

TECHNICAL FEATURES
• Double block and bleed configuration 1002 – 2003 - 1004
• Single-piece body in St.St.316/316L dual grade
• Process connection 2” # 2500 - Api 10000 (6000 & 10000 psi)
• Quick installation with safe continuous operation & maintenance
• Unique key for sequential operation
• Ped Compliant
• Atex Compliant
• Asme B16.34 / Asme VIII, DIV 1/Asme
B1.20.1/Api Compliant
• IEC 61508.2010 and IEC 61511:2003 Compliant
• Fire safe to API 607
OPTIONALS
• IP 65 weatherproof box in St.St. 316
with/without windows; with/without insulation
• Heather with thermoregulation
• With breathing plugs
• Terminal boxes for cables wiring
• Body in Duplex St.St. (ASTM A182 F51);
Inconel 625 (ASTM B564 UNS N06625);
LTCS carbon steel (ASTM A350 LF2)

Head office: via Novara 10/B-C • 20013 Magenta (MI) Italy
Tel. +39 02 97298663 • Fax +39 02 97291855
www.indra.it • indra@indra.it
