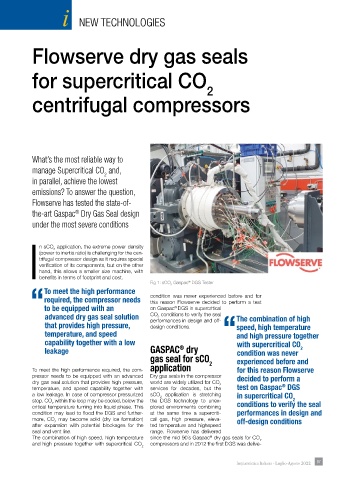

NEW TECHNOLOGIES



            Flowserve dry gas seals




            for supercritical CO                                          2



            centrifugal compressors












            What’s the most reliable way to
            manage Supercritical CO  and,
                                      2
            in parallel, achieve the lowest
            emissions? To answer the question,
            Flowserve has tested the state-of-

            the-art Gaspac  Dry Gas Seal design
                           ®
            under the most severe conditions



               n sCO  application, the extreme power density
                    2
               (power to inertia ratio) is challenging for the cen-
               trifugal compressor design as it requires special
               verifi cation of its components, but on the other
               hand, this allows a smaller size machine, with
           Ibenefi ts in terms of footprint and cost.
                                                      Fig 1: sCO  Gaspac  DGS Tester
                                                                   ®
                                                             2
                 To meet the high performance
                 required, the compressor needs       condition was never experienced before and for
                                                      this reason Flowserve decided to perform a test
            “to be equipped with an                   on Gaspac DGS in supercritical
                                                              ®
                 advanced dry gas seal solution       CO  conditions to verify the seal   The combination of high
                                                        2
                                                      performances in design and off-
                 that provides high pressure,         design conditions.            speed, high temperature
                 temperature, and speed                                        “and high pressure together
                 capability together with a low                                     with supercritical CO
                                                                ®
                 leakage                              GASPAC  dry                   condition was never    2
                                                      gas seal for sCO              experienced before and
            To meet the high performance required, the com- application    2        for this reason Flowserve

            pressor needs to be equipped with an advanced   Dry gas seals in the compressor   decided to perform a
            dry gas seal solution that provides high pressure,   world are widely utilized for CO
                                                                                                    ®
                                                                              2
            temperature, and speed capability together with   services for decades, but the   test on Gaspac  DGS
            a low leakage. In case of compressor pressurized   sCO   application  is stretching   in supercritical CO
                                                         2
            stop, CO  within the loop may be cooled, below the   the DGS technology to unex-            2
                   2
            critical temperature turning into liquid phase. This   plored environments combining   conditions to verify the seal
            condition may lead to fl ood the DGS and further-  at  the same  time  a supercriti-  performances in design and
            more, CO  may become solid (dry ice formation)   cal gas, high pressure, eleva-  off-design conditions
                    2
            after expansion with potential blockages for the   ted temperature and highspeed
            seal and vent line.                       range.  Flowserve has  delivered
                                                                           ®
            The combination of high speed, high temperature   since the mid 90´s Gaspac  dry gas seals for CO
                                                                                            2
            and high pressure together with supercritical CO    compressors and in 2012 the fi rst DGS was delive-
                                                   2
                                                                                    Impiantistica Italiana - Luglio-Agosto 2022  97
