TECHNOLOGICAL APPLICATION



            A new Sanco experience:




            A deluge foam system



            installed into a Blast Proof




            Resistant Module (S-BRM)






            In the continuous effort to improve
            its performances, Sanco successfully

            designed and manufactured 14 water/
            foam deluge fire-fighting modules

            named S-BRM, with dimensions
            up to 13x2.5x3 m







            Nico Zorzetto, Director, Export & Marketing
            Domenico Porzio, Director, Technical Department
            Sanco S.p.A.




                      his technological application was de-

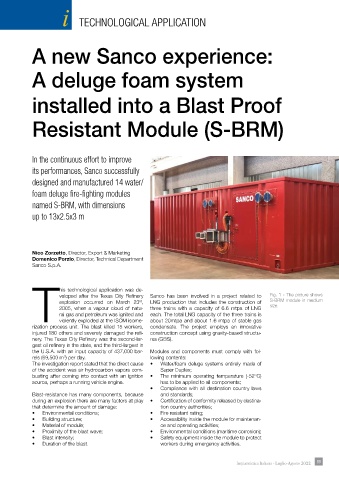

                      veloped after the Texas City Refinery   Sanco has been involved in a project related to   Fig. 1 - The picture shows
                      explosion occurred on March 23 ,   LNG production that includes the construction of   S-BRM module in medium
                                                  rd
                      2005, when a vapour cloud of natu-  three trains with a capacity of 6.6 mtpa of LNG   size.
                      ral gas and petroleum was ignited and   each. The total LNG capacity of the three trains is
            Tviolently exploded at the ISOM isome-    about 20mtpa and about 1.6 mtpa of stable gas
            rization process unit. The blast killed 15 workers,   condensate. The project employs an innovative
            injured 180 others and severely damaged the refi-  construction concept using gravity-based structu-
            nery. The Texas City Refinery was the second-lar-  res (GBS).
            gest oil refinery in the state, and the third-largest in
            the U.S.A. with an input capacity of 437,000 bar-  Modules and components must comply with fol-
            rels (69,500 m ) per day.                 lowing contents:
                       3
            The investigation report stated that the direct cause   •   Water/foam deluge systems entirely made of
            of the accident was air hydrocarbon vapors com-  Super Duplex;
            busting after coming into contact with an ignition   •   The minimum operating temperature (-52°C)
            source, perhaps a running vehicle engine.    has to be applied to all components;
                                                      •   Compliance with all destination country laws
            Blast-resistance has many components, because   and standards;
            during an explosion there are many factors at play   •   Certification of conformity released by destina-
            that determine the amount of damage:         tion country authorities;
            •   Environmental conditions;             •   Fire resistant rating;
            •   Building structure;                   •   Accessibility inside the module for maintenan-
            •   Material of module;                      ce and operating activities;
            •   Proximity of the blast wave;          •   Environmental conditions (maritime corrosion);
            •   Blast intensity;                      •   Safety equipment inside the module to protect
            •   Duration of the blast.                   workers during emergency activities.



                                                                                    Impiantistica Italiana - Luglio-Agosto 2022  89
